Trace Data Structure

This document provides a detailed view of the schema for traces and its ingredients. MLflow traces are compatible to OpenTelemetry specs, but we also define a few additional layers of structure upon the OpenTelemetry Spans to provide additional metadata about the trace.

note

The request_id field was renamed to trace_id in MLflow 3.

Structure of Traces

TL;DR: Trace = TraceInfo + TraceData where TraceData = List[Span]

Trace
Trace Info
Trace Data
Span

Trace Structure

A Trace in MLflow consists of two components: Trace Info and Trace Data.

The metadata that aids in explaining the origination of the trace, the status of the trace, and the information about the total execution time is stored within the Trace Info. The Trace Data is comprised entirely of the instrumented Span objects that make up the core of the trace.

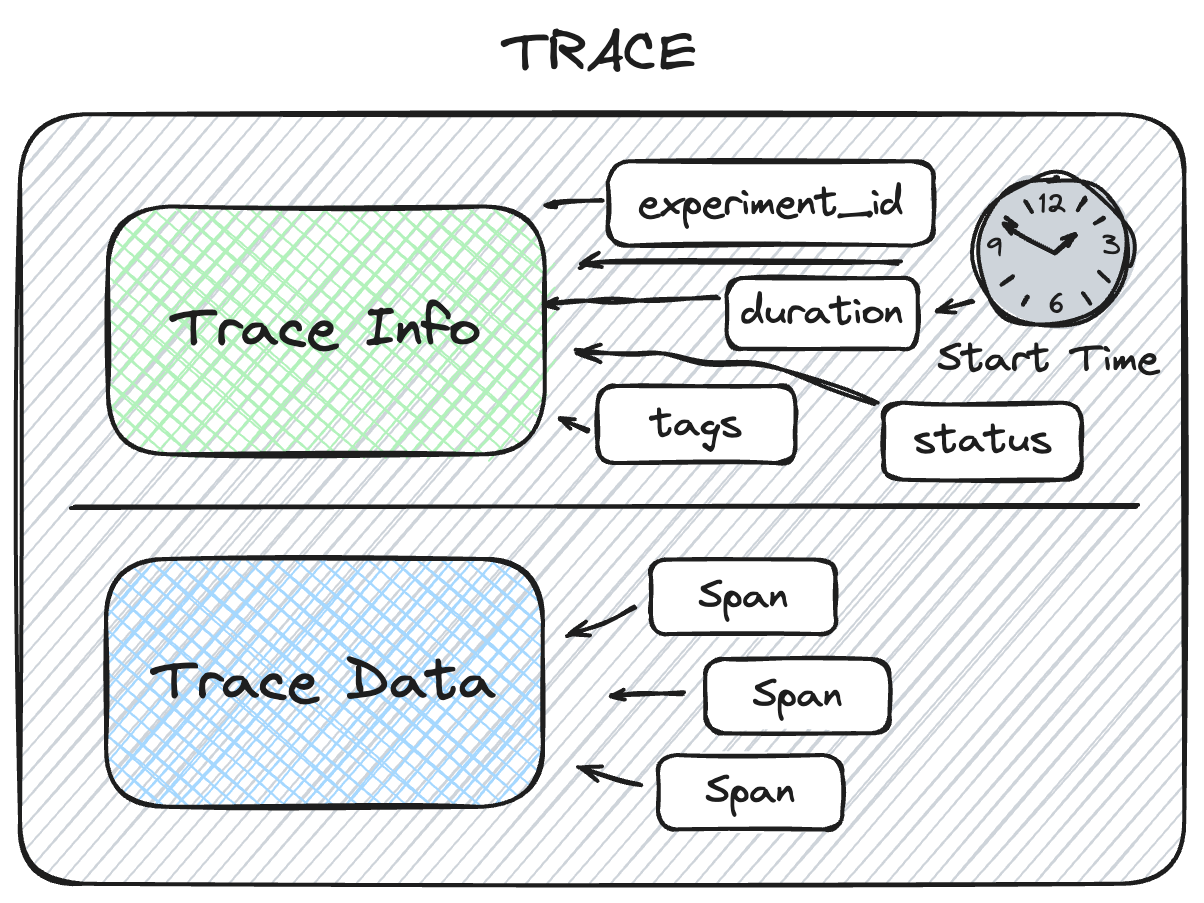

Trace Architecture

Trace Data Structure

The Trace Data within MLflow's tracing feature provides the core of the trace information. Within this object is a list of Span objects that represent the individual steps of the trace. These spans are associated with one another in a hierarchical relationship, providing a clear order-of-operations linkage of what happened within your application during the trace.

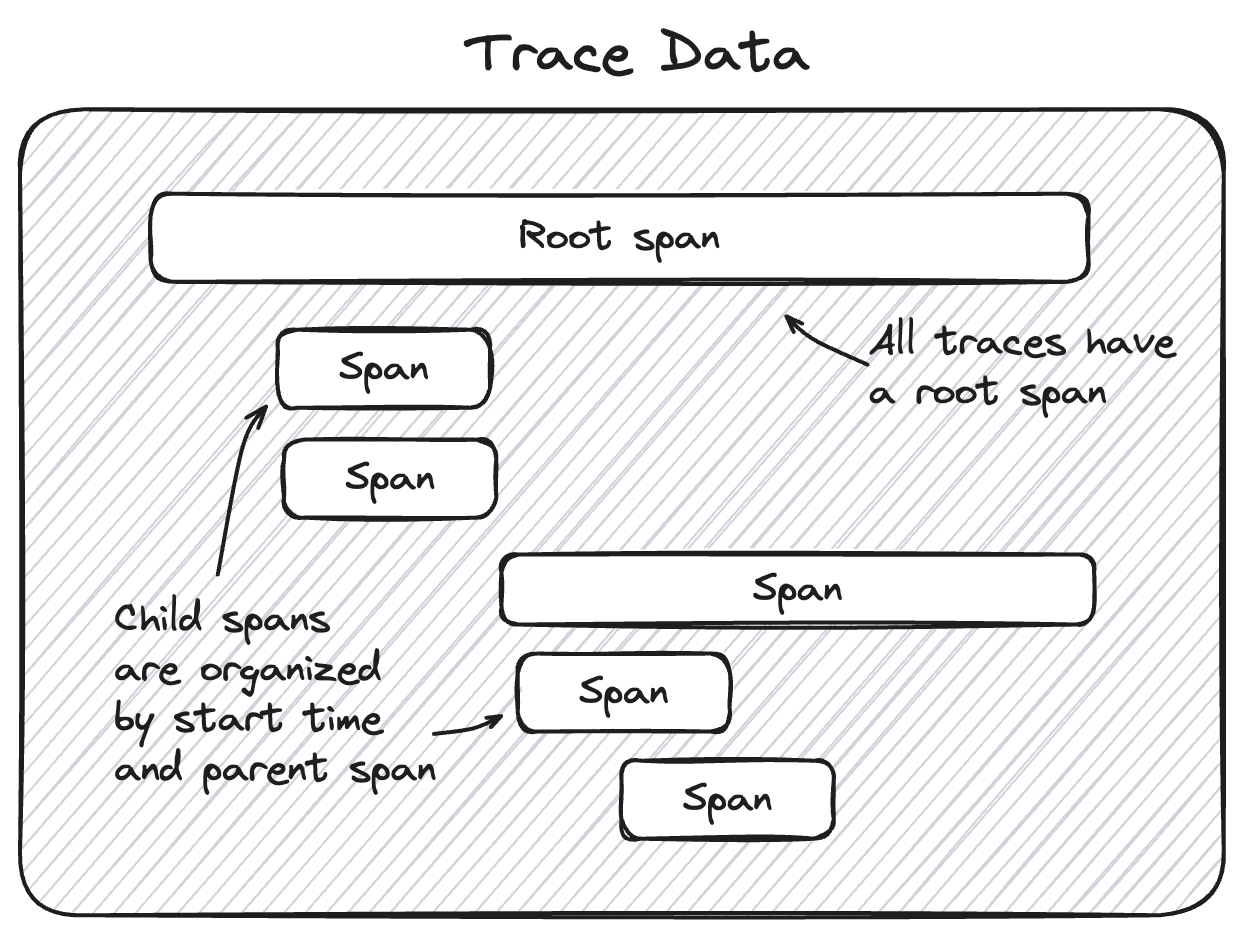

Trace Data Architecture

Trace

A trace is a root object composed of two components:

tip

Check the API documentation for helper methods on these dataclass objects for more information on how to convert or extract data from them.

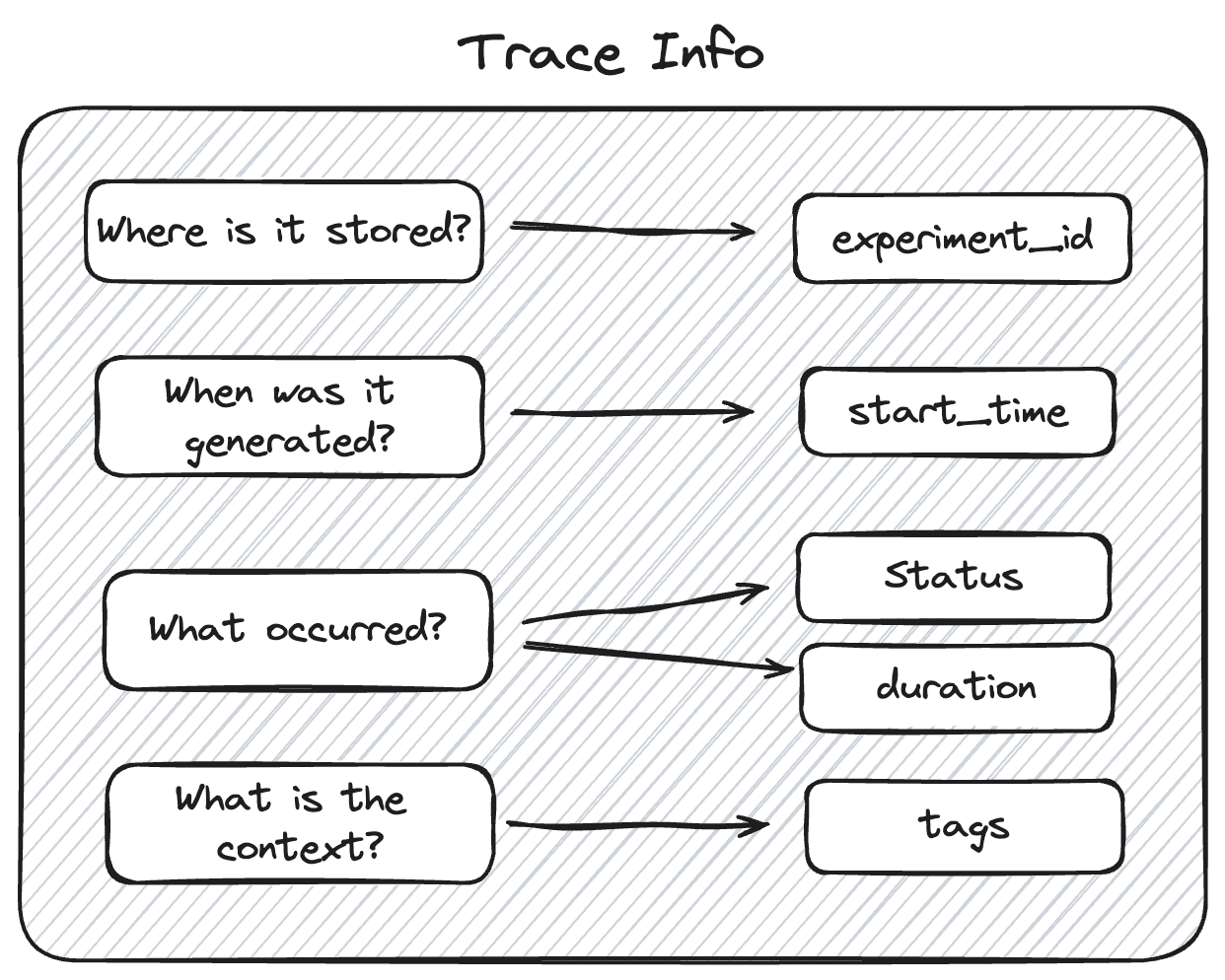

Trace Info

Trace Info is a dataclass object that contains metadata about the trace. This metadata includes information about the trace's origin, status, and various other data that aids in retrieving and filtering traces when used with mlflow.client.MlflowClient.search_traces() and for navigation of traces within the MLflow UI.

To learn more about how TraceInfo metadata is used for searching, you can see examples here.

The data that is contained in the TraceInfo object is used to populate the trace view page within the MLflow tracking UI, as shown below.

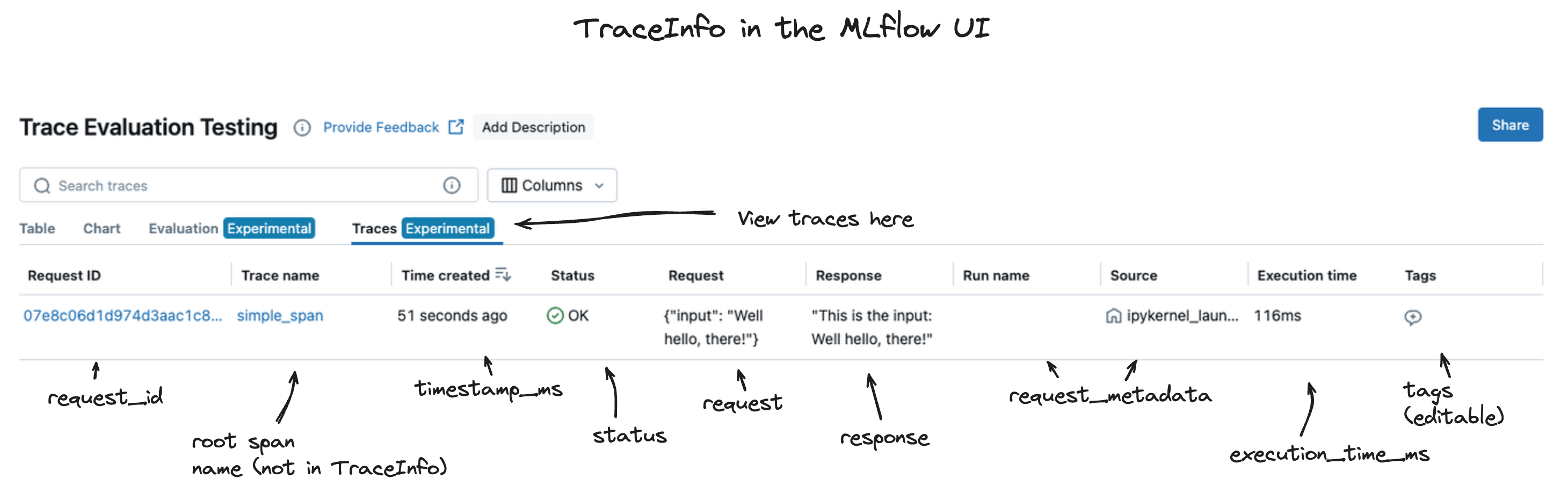

TraceInfo as it is used in the MLflow UI

The primary components of MLflow TraceInfo objects are listed below.

Property	Type	Description	Note
trace_id	`str`	A unique identifier for the trace. The identifier is used within MLflow and integrated system to resolve the event being captured and to provide associations for external systems to map the logged trace to the originating caller.	This value is generated by the tracing backend and is immutable. Within the tracing client APIs, you will need to deliberately pass this value to the span creation API to ensure that a given span is associated with a trace.
trace_location	`mlflow.entities.TraceLocation()`	The location where the trace is stored.	MLflow currently supports MLflow Experiment or Databricks Inference Table as a trace location.
request_time	`int`	The time that marks the moment when the root span of the trace was created. This is a Unix timestamp in milliseconds.	The time reflected in this property is the time at with the trace was created, not the time at which a request to your application was made. As such, it does not factor into account the time it took to process the request to the environment in which your application is being served, which may introduce additional latency to the total round trip time, depending on network configurations.
execution_duration	`int`	The time that marks the moment when the call to end the trace is made. This is a Unix timestamp in milliseconds.	This time does not include the networking time associated with sending the response from the environment that generates the trace to the environment that is consuming the application’s invocation result.
state	`mlflow.entities.TraceState()`	An enumerated value that denotes the state of the trace.	`TraceState` values are one of: OK - The trace and the instrumented call were successful. ERROR - An error occurred while an application was being instrumented. The error can be seen within the span data for the trace. IN_PROGRESS - The trace has started and is currently running. Temporary state that will update while spans are being logged to a trace. STATE_UNSPECIFIED - internal default state that should not be seen in logged traces.
request_preview	`str`	The `request_preview` property is the input data for the entire trace. The input `str` is a JSON-serialized string that contains the input data for the trace, typically the end-user request that was submitted as a call to the application.	Due to the varied structures of inputs that could go to a given application that is being instrumented by MLflow Tracing, all inputs are JSON serialized for compatibility's sake. This allows for the input data to be stored in a consistent format, regardless of the input data's structure. This field can be truncated if it exceeds the length limit.
response_preview	`str`	The `response_preview` property is the final output data that will be returned to the caller of the invocation of the application.	Similar to the request property, this value is a JSON-serialized string to maximize compatibility of disparate formats. This field can be truncated if it exceeds the length limit.
trace_metadata	`dict[str, str]`	The trace metadata are additional key-value pairs of information that are associated with the Trace, set and modified by the tracing backend.	These are not open for addition or modification by the user, but can provide additional context about the trace, such as an MLflow `run_id` that is associated with the trace.
tags	`dict[str, str]`	User-defined key-value pairs that can be applied to a trace for applying additional context, aid in search functionality, or to provide additional information during the creation or after the successful logging of a trace.	These tags are fully mutable and can be changed at any time, even long after a trace has been logged to an experiment.
assessments	List of `mlflow.entities.Assessment()`	A list of assessments associated with the trace.	Currently, this property is only supported on Databricks.

Trace Data

The MLflow TraceData object is a dataclass object that holds the core of the trace data. This object contains the following elements:

Property	Description	Note
spans	This property is a list of Span objects that represent the individual steps of the trace.	For further information on the structure of Span objects, see the section below.

Span Schema

Spans are the core of the trace data. They record key, critical data about each of the steps within your genai application.

When you view your traces within the MLflow UI, you're looking at a collection of spans, as shown below.

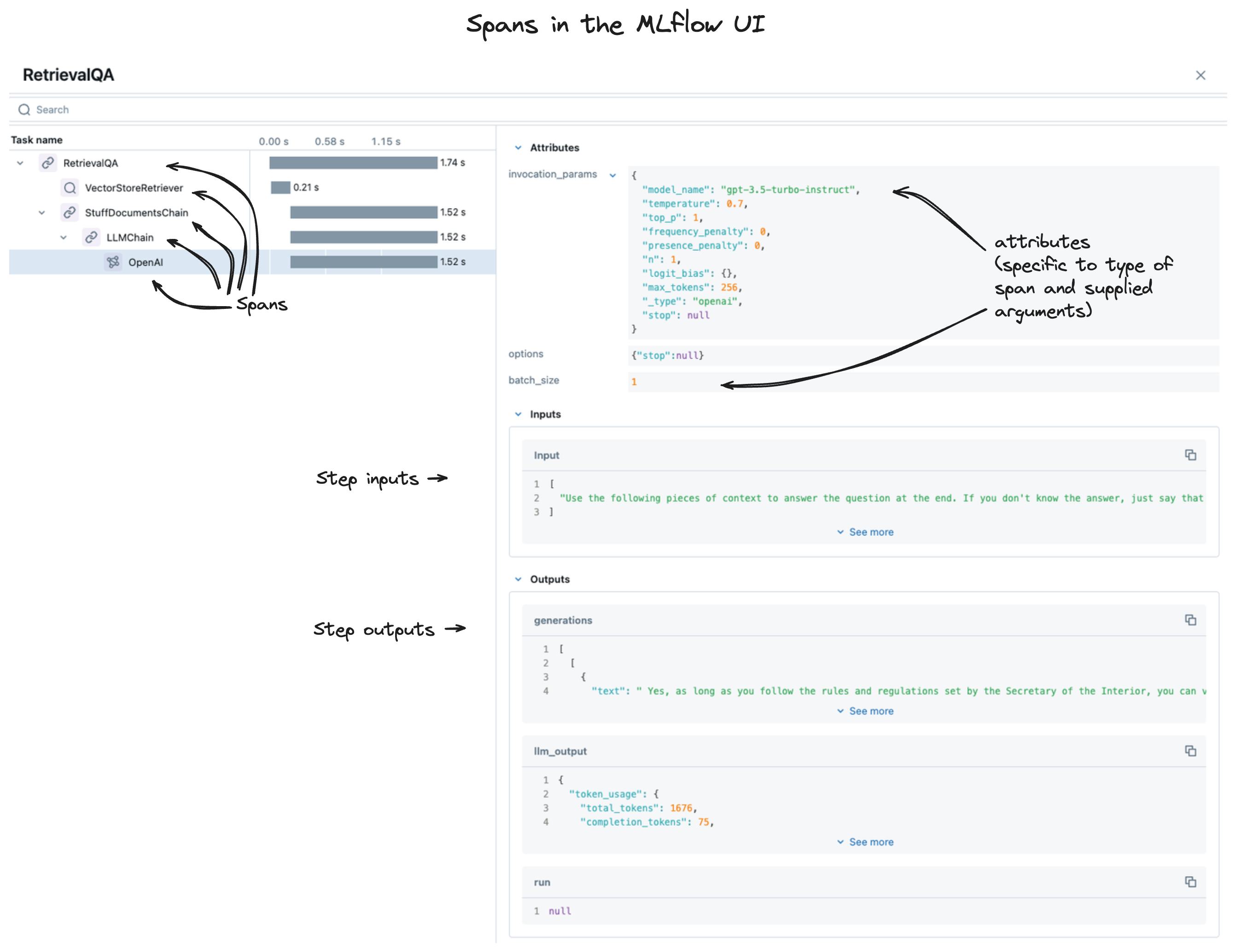

Spans within the MLflow UI

The sections below provide a detailed view of the structure of a span.

Property	Description	Note
inputs	The inputs are stored as JSON-serialized strings, representing the input data that is passed into the particular stage (step) of your application. Due to the wide variety of input data that can be passed between specific stages of a GenAI application, this data may be extremely large (such as when using the output of a vector store retrieval step).	Reviewing the Inputs, along with the Outputs, of individual stages can dramatically increase the ability to diagnose and debug issues that exist with responses coming from your application.
outputs	The outputs are stored as JSON-serialized strings, representing the output data that is passed out of the particular stage (step) of your application.	Just as with the Inputs, the Outputs can be quite large, depending on the complexity of the data that is being passed between stages.
attributes	Attributes are metadata that are associated with a given step within your application. These attributes are key-value pairs that can be used to provide insight into behavioral modifications for function and method calls, giving insight into how modification of them can affect the performance of your application.	Common examples of attributes that could be associated with a given span include: model temperature document_count These attributes provide additional context and insight into the results that are present in the outputs property for the span.
events	Events are a system-level property that is optionally applied to a span only if there was an issue during the execution of the span. These events contain information about exceptions that were thrown in the instrumented call, as well as the stack trace.	This data is structured within a SpanEvent object, containing the properties: name timestamp attributes The attributes property contains the stack trace of the exception that was thrown during the execution of the span if such an error occurred during execution.
parent_id	The `parent_id` property is an identifier that establishes the hierarchical association of a given span with its parent span. This is used to establish an event chain for the spans, helping to determine which step followed another step in the execution of the application.	A span must have a `parent_id` set.
span_id	The `span_id` is a unique identifier that is generated for each span within a trace. This identifier is used to disambiguate spans from one another and allow for proper association of the span within the sequential execution of other spans within a trace.	A `span_id` is set when a span is created and is immutable.
trace_id	The `trace_id` property is a unique identifier that is generated for each trace and is propagated to each span that is a member of that trace.	The `trace_id` is a system-generated property and is immutable.
name	The name of the trace is either user-defined (optionally when using the fluent and client APIs) or is automatically generated through CallBack integrations or when omitting the name argument when calling the fluent or client APIs. If the name is not overridden, the name will be generated based on the name of the function or method that is being instrumented.	It is recommended to provide a name for your span that is unique and relevant to the functionality that is being executed when using manual instrumentation via the client or fluent APIs. Generic names for spans or confusing names can make it difficult to diagnose issues when reviewing traces.
status	The status of a span is reflected in a value from the enumeration object `SpanStatusCode`. The span status object contains an optional description if the `status_code` is reflecting an error that occurred. The values that the status may have are: OK - The span and the underlying instrumented call were successful. UNSET - The status of the span hasn’t been set yet (this is the default value and should not be seen in logged trace events) ERROR - An issue happened within the call being instrumented. The `description` property will contain additional information about the error that occurred.	Evaluating the status of spans can greatly reduce the amount of time and effort required to diagnose issues with your applications.
start_time_ns	The unix timestamp (in nanoseconds) when the span was started.	The precision of this property is higher than that of the trace start time, allowing for more granular analysis of the execution time of very short-lived spans.
end_time_ns	The unix timestamp (in nanoseconds) when the span was ended.	This precision is higher than the trace timestamps, similar to the `start_time_ns` timestamp above.

Span Types

Span types are a way to categorize spans within a trace. By default, the span type is set to "UNKNOWN" when using the trace decorator. MLflow provides a set of predefined span types for common use cases, while also allowing you to setting custom span types.

The following span types are available:

Span Type	Description
`"LLM"`	Represents a call to an LLM endpoint or a local model.
`"CHAT_MODEL"`	Represents a query to a chat model. This is a special case of an LLM interaction.
`"CHAIN"`	Represents a chain of operations.
`"AGENT"`	Represents an autonomous agent operation.
`"TOOL"`	Represents a tool execution (typically by an agent), such as querying a search engine.
`"EMBEDDING"`	Represents a text embedding operation.
`"RETRIEVER"`	Represents a context retrieval operation, such as querying a vector database.
`"PARSER"`	Represents a parsing operation, transforming text into a structured format.
`"RERANKER"`	Represents a re-ranking operation, ordering the retrieved contexts based on relevance.
`"UNKNOWN"`	A default span type that is used when no other span type is specified.

To set a span type, you can pass the span_type parameter to the @mlflow.trace decorator or mlflow.start_span() context manager. When you are using automatic tracing, the span type is automatically set by MLflow.

import mlflow
from mlflow.entities import SpanType


# Using a built-in span type
@mlflow.trace(span_type=SpanType.RETRIEVER)
def retrieve_documents(query: str):
    ...


# Setting a custom span type
with mlflow.start_span(name="add", span_type="MATH") as span:
    span.set_inputs({"x": z, "y": y})
    z = x + y
    span.set_outputs({"z": z})

    print(span.span_type)
    # Output: MATH

Schema for specific span types

MLflow has a set of 10 predefined types of spans (see mlflow.entities.SpanType), and certain span types have properties that are required in order to enable additional functionality within the UI and downstream tasks such as evaluation.

Retriever Spans

The RETRIEVER span type is used for operations involving retrieving data from a data store (for example, querying documents from a vector store). The RETRIEVER span type has the following schema:

Property	Description	Note
Input	There are no restrictions on the span inputs
Output	The output must be of type `List[mlflow.entities.Document]`, or a dict matching the structure of the dataclass. The dataclass contains the following properties: id (`Optional[str]`) - An optional unique identifier for the document. page_content* (`str`) - The text content of the document. metadata (`Optional[Dict[str,any]]`) - The metadata associated with the document. There are two important metadata keys that are reserved for the MLflow UI and evaluation metrics: `"doc_uri" (str)`: The URI for the document. This is used for rendering a link in the UI. `"chunk_id" (str)`: If your document is broken up into chunks in your data store, this key can be used to identify the chunk that the document is a part of. This is used by some evaluation metrics.	This output structure is guaranteed to be provided if the traces are generated via MLflow autologging for the LangChain and LlamaIndex flavors. By conforming to this specification, `RETRIEVER` spans will be rendered in a more user-friendly manner in the MLflow UI, and downstream tasks such as evaluation will function as expected.
Attributes	There are no restrictions on the span attributes

* For example, both [Document(page_content="Hello world", metadata={"doc_uri": "https://example.com"})] and [{"page_content": "Hello world", "metadata": {"doc_uri": "https://example.com"}}] are valid outputs for a RETRIEVER span.

Chat Completion Spans

Spans of type CHAT_MODEL or LLM are used to represent interactions with a chat completions API (for example, OpenAI's chat completions, or Anthropic's messages API). As providers can have different schemas for their API, there are no restrictions on the format of the span's inputs and outputs.

However, it is still important to have a common schema in order to enable certain UI features (e.g. rich conversation display), and to make authoring evaluation functions easier. To support this, we specify some custom attributes for standardized chat messages and tool definitions:

Attribute Name Description Note

Attribute Name	Description	Note
mlflow.chat.messages	This attribute represents the system/user/assistant messages involved in the conversation with the chat model. It enables rich conversation rendering in the UI, and will also be used in MLflow evaluation in the future. The type must be `List[` ChatMessage `]`	This attribute can be conveniently set using the `mlflow.tracing.set_span_chat_messages()` function. This function will throw a validation error if the data does not conform to the spec.
mlflow.chat.tools	This attribute represents the tools that were available for the chat model to call. In the OpenAI context, this would be equivalent to the tools param in the Chat Completions API. The type must be `List[` ChatTool `]`	This attribute can be conveniently set using the `mlflow.tracing.set_span_chat_tools()` function. This function will throw a validation error if the data does not conform to the spec.

mlflow.chat.messages

This attribute represents the system/user/assistant messages involved in the conversation with the chat model. It enables rich conversation rendering in the UI, and will also be used in MLflow evaluation in the future.

The type must be List[ ChatMessage ]

This attribute can be conveniently set using the mlflow.tracing.set_span_chat_messages() function. This function will throw a validation error if the data does not conform to the spec.

mlflow.chat.tools

This attribute represents the tools that were available for the chat model to call. In the OpenAI context, this would be equivalent to the tools param in the Chat Completions API.

The type must be List[ ChatTool ]

This attribute can be conveniently set using the mlflow.tracing.set_span_chat_tools() function. This function will throw a validation error if the data does not conform to the spec.

Please refer to the example below for a quick demonstration of how to use the utility functions described above, as well as how to retrieve them using the span.get_attribute() function:

import mlflow
from mlflow.entities.span import SpanType
from mlflow.tracing.constant import SpanAttributeKey
from mlflow.tracing import set_span_chat_messages, set_span_chat_tools

# example messages and tools
messages = [
    {
        "role": "system",
        "content": "please use the provided tool to answer the user's questions",
    },
    {"role": "user", "content": "what is 1 + 1?"},
]

tools = [
    {
        "type": "function",
        "function": {
            "name": "add",
            "description": "Add two numbers",
            "parameters": {
                "type": "object",
                "properties": {
                    "a": {"type": "number"},
                    "b": {"type": "number"},
                },
                "required": ["a", "b"],
            },
        },
    }
]


@mlflow.trace(span_type=SpanType.CHAT_MODEL)
def call_chat_model(messages, tools):
    # mocking a response
    response = {
        "role": "assistant",
        "tool_calls": [
            {
                "id": "123",
                "function": {"arguments": '{"a": 1,"b": 2}', "name": "add"},
                "type": "function",
            }
        ],
    }

    combined_messages = messages + [response]

    span = mlflow.get_current_active_span()
    set_span_chat_messages(span, combined_messages)
    set_span_chat_tools(span, tools)

    return response


call_chat_model(messages, tools)

trace_id = mlflow.get_last_active_trace_id()
trace = mlflow.get_trace(trace_id)
span = trace.data.spans[0]

print("Messages: ", span.get_attribute(SpanAttributeKey.CHAT_MESSAGES))
print("Tools: ", span.get_attribute(SpanAttributeKey.CHAT_TOOLS))
