Tracing AutoGen🤖

AutoGen is an open-source framework for building event-driven, distributed, scalable, and resilient AI agent systems.

MLflow Tracing provides automatic tracing capability for AutoGen, an open-source multi-agent framework. By enabling auto tracing for AutoGen by calling the mlflow.autogen.autolog() function, MLflow will capture nested traces and log them to the active MLflow Experiment upon agents execution.

import mlflow

mlflow.autogen.autolog()

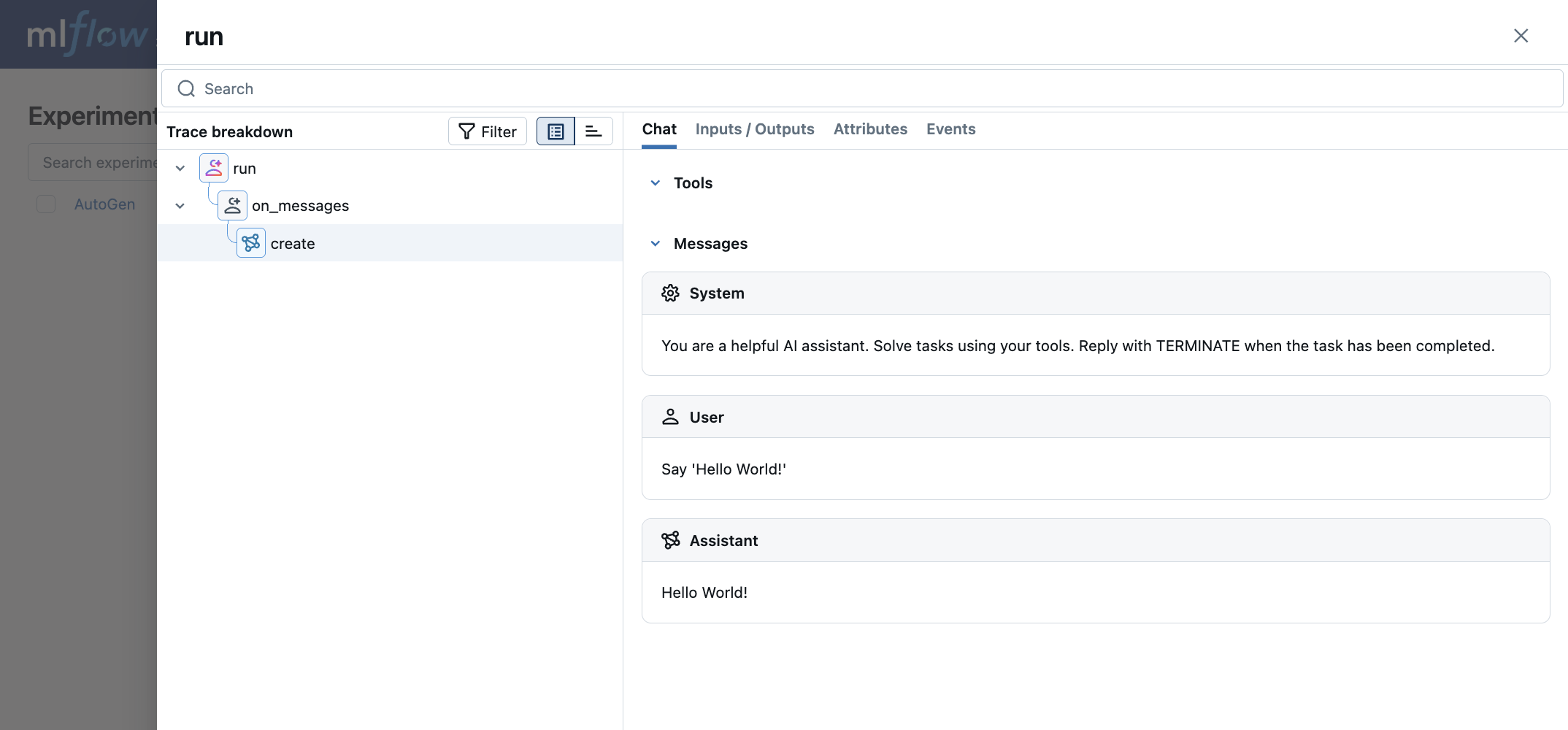

MLflow captures the following information about the multi-agent execution:

• Which agent is called at different turns
• Messages passed between agents
• LLM and tool calls made by each agent, organized per an agent and a turn
• Latencies
• Any exception if raised

Basic Example

import os
from typing import Annotated, Literal

from autogen import ConversableAgent

import mlflow

# Turn on auto tracing for AutoGen
mlflow.autogen.autolog()

# Optional: Set a tracking URI and an experiment
mlflow.set_tracking_uri("http://localhost:5000")
mlflow.set_experiment("AutoGen")


# Define a simple multi-agent workflow using AutoGen
config_list = [
    {
        "model": "gpt-4o-mini",
        # Please set your OpenAI API Key to the OPENAI_API_KEY env var before running this example
        "api_key": os.environ.get("OPENAI_API_KEY"),
    }
]

Operator = Literal["+", "-", "*", "/"]


def calculator(a: int, b: int, operator: Annotated[Operator, "operator"]) -> int:
    if operator == "+":
        return a + b
    elif operator == "-":
        return a - b
    elif operator == "*":
        return a * b
    elif operator == "/":
        return int(a / b)
    else:
        raise ValueError("Invalid operator")


# First define the assistant agent that suggests tool calls.
assistant = ConversableAgent(
    name="Assistant",
    system_message="You are a helpful AI assistant. "
    "You can help with simple calculations. "
    "Return 'TERMINATE' when the task is done.",
    llm_config={"config_list": config_list},
)

# The user proxy agent is used for interacting with the assistant agent
# and executes tool calls.
user_proxy = ConversableAgent(
    name="Tool Agent",
    llm_config=False,
    is_termination_msg=lambda msg: msg.get("content") is not None
    and "TERMINATE" in msg["content"],
    human_input_mode="NEVER",
)

# Register the tool signature with the assistant agent.
assistant.register_for_llm(name="calculator", description="A simple calculator")(
    calculator
)
user_proxy.register_for_execution(name="calculator")(calculator)
response = user_proxy.initiate_chat(
    assistant, message="What is (44231 + 13312 / (230 - 20)) * 4?"
)

Disable auto-tracing

Auto tracing for AutoGen can be disabled globally by calling mlflow.autogen.autolog(disable=True) or mlflow.autolog(disable=True).
